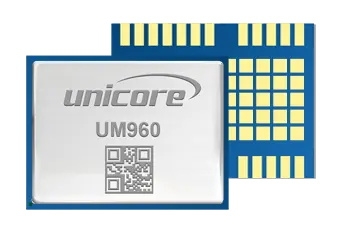

UM960

GPS/BDS/GLONASS/Galileo/QZSS All-constellation Multi-frequency High-precision RTK Positioning Module

Unicore's new-generation proprietary 'miniature' high-precision positioning module, based on the Nebulas IV SoC, is the UM960. It simultaneously tracks multiple frequencies of all gnss  rtk , enabling the module to output high-precision RTK positioning.

With its superb performance, the UM960 is a perfect choice for high-precision applications such as UAV light shows, lawn mowers, handheld devices, high-precision GIS, robotics, etc.


UM960 Features

High precision, low power consumption and compact size


Based on the new generation UAV GNSS SoC -NebulasIV, which integrates RF, baseband and high precision algorithm


Supports all-constellation multi-frequency on-chip RTK positioning solution


All-constellation multi-frequency GPS  RTK engine and advanced RTK processing technology


Tracking different frequencies independently


60 dB narrowband anti-jamming and jamming detection


UM960 Technical Specifications

Performance Specifications

Channel 1408 channels, based on NebulasIV

Frequency GPS L1C/A, L2C, L2P,  L5

 BDS B1I, B2I, B3I, B1C, B2a, B2b*

 GLONASS G1, G2

 Galileo E1, E5a, E5b, E6*

 QZSS L1, L2, L5

 SBAS L1C/A

Single Point Positioning(RMS) Horizontal: 1.5m

 Vertical: 2.5m

DGPS (RMS) Horizontal: 0.4m

 Vertical: 0.8m

RTK (RMS) Horizontal: 0.8cm+1ppm

 Vertical: 1.5cm+1ppm

Observation Accuracy (RMS) BDS          GPS   GLONASS  Galileo

B11/L1 C/A/G1/E1 Code 10cm    10cm    10cm    10cm

B11/L1C/A/G1/E1 Carrier Phase 1mm    1mm    1mm    1mm

B21/L2P(Y)/L2C/G2/E5b Code 10cm    10cm    10cm    10cm

B21/L2P(Y)/L2C/G2/E5b Carrier Phase 1mm    1mm    1mm    1mm

Time Accuracy (RMS) 20 ns

Velocity Accuracy (RMS) 0.03 m/s

Data Update Rate 20 Hz positioning

Cold Start <30s

lnitialization Time <5s (typical)

Initialization Reliability >99.9%

Differential Data RTCM V2.3, RTCM V3.X, CMR

Data Format NMEA 0183, Unicore


Physical Characteristics

Packaging 24 pin LGA

Dimension 12.2 × 16.0 × 2.6 mm

Weight 1.11g ± 0.03g


Environmental Specifications

Working Temperature -40°C~+85°C

Storage Temperature -55°C~+95°C

Humidity 95% No condensation

Vibration GJB150.16A-2009, MIL-STD-810F

Shock GJB150.16A-2009, MIL-STD-810F


Communication Interfaces

3 x UART (LVTTL)

1 x 12C*


Note: Items marked with * are only supported by specific firmware.
